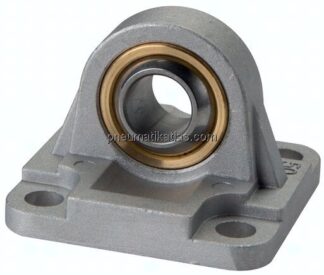

Schwenkbefestigungen sphärische Lasche|für Pneumatik-Zylinder ISO 15552

Werkstoff Alle 1.4401 Aluminium Stahl brüniert für Kolbendurchmesser [mm] Alle 32 MM 40 MM 50 MM 63 MM 80 MM 100 MM 125 MM 160 MM 200 MM 250 MM A [mm] Alle 14 MM 16 MM 21 MM 25 MM 37 MM 43 MM 49 MM B [mm] Alle 10,5 MM 12,0 MM 15,0 MM 18,0 MM 25,0 MM 28,0 MM 33,0 MM D [mm] Alle 10 MM 12 MM 16 MM 20 MM 30 MM 35 MM 40 MM F [mm] Alle 22 MM 25 MM 27 MM 32 MM 36 MM 41 MM 50 MM 55 MM 60 MM 70 MM L [mm] Alle 142 MM 160 MM 170 MM 190 MM 210 MM 230 MM 275 MM 315 MM 335 MM 375 MM M [mm] Alle 45 MM 55 MM 65 MM 75 MM 95 MM 115 MM 140 MM 180 MM 220 MM 270 MM N [mm] Alle 32,5 MM 38,0 MM 46,5 MM 56,5 MM 72,0 MM 89,0 MM 110,0 MM 140,0 MM 175,0 MM 220,0 MM Anwenden
