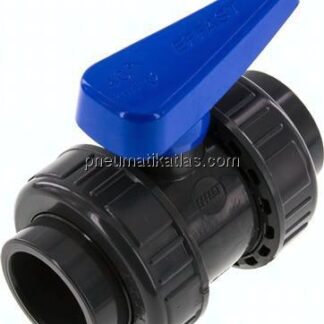

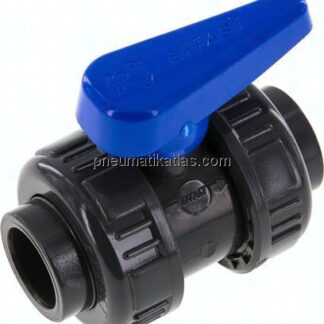

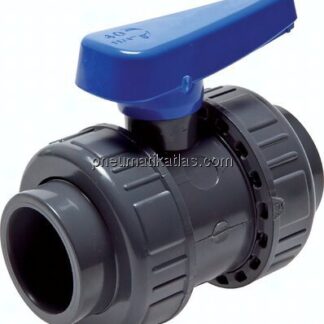

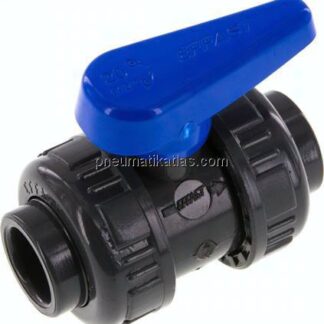

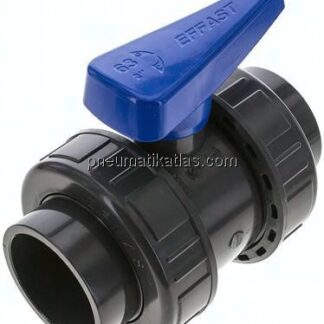

Kugelhähne mit Klebemuffen, PVC-U (Wasserausführung)|PN 16

Innendurchmesser D [mm] Alle 16 MM 20 MM 25 MM 32 MM 40 MM 50 MM 63 MM 75 MM 90 MM 110 MM DN [mm] Alle 15 MM 20 MM 25 MM 32 MM 40 MM 50 MM 65 MM 80 MM 100 MM H [mm] Alle 80 MM 92 MM 106 MM 121 MM 143 MM 172 MM 229 MM 242 MM 284 MM L [mm] Alle 14,5 MM 16,0 MM 19,0 MM 22,0 MM 26,0 MM 31,0 MM 39,0 MM 44,0 MM 51,0 MM 61,0 MM Z [mm] Alle 48 MM 51 MM 54 MM 62 MM 69 MM 81 MM 94 MM 140 MM 141 MM 157 MM E [mm] Alle 49 MM 60 MM 69 MM 80 MM 96 MM 116 MM 167 MM 209 MM B [mm] Alle 50 MM 58 MM 69 MM 76 MM 92 MM 104 MM 145 MM 170 MM C [mm] Alle 64 MM 73 MM 85 MM 97 MM 111 MM 124 MM 189 MM 204 MM Durchfluss* [l/min] Alle 190 L/MIN 380 L/MIN 700 L/MIN 1000 L/MIN 1700 L/MIN 3200 L/MIN 5000 L/MIN 7000 L/MIN 10000 L/MIN Anwenden
